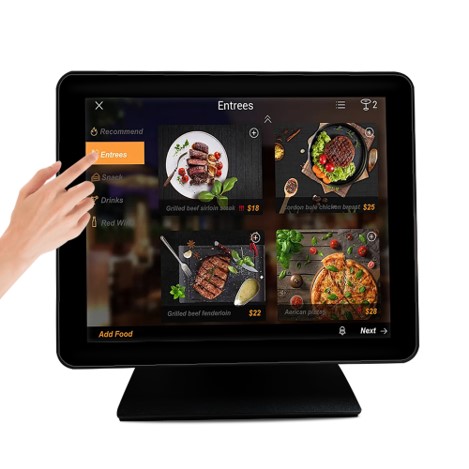

TM-1700
17” TFT LCD Touch Monitor





Specification

Model No.  TM-1700
Graphics Display  Touch Monitor
Module Size  17 inch TFT-LCD
Touch Mode  Capacitive touch
Viewing Size  337.92(W) X 207.34(H) mm
Resolution  1280 X 1024 Pixels
Pixel Size  0.107 X 0.372 mm
Viewing Angle  180 Degree
Backlight Type  LED Backlight
Luminance  350 CD/M2
Contrast Ratio  1000:01:00
Response Time  25ms
Input Power  100-240VAC 50/60HZ
Working Power  DC 12V 2A (Power Adapter)
Interface  VGA+USB+DC2.1
Operating System  Windows/ Android/ IOS
Weight  3.5KG
Working T&H  (-40°C~60°C) (30%~80%)
Storage T&H  (-60°C~80°C) (20%~90%)
