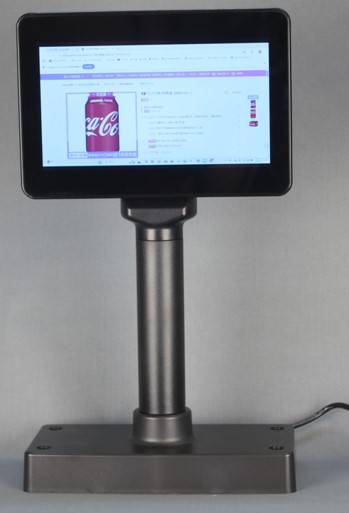

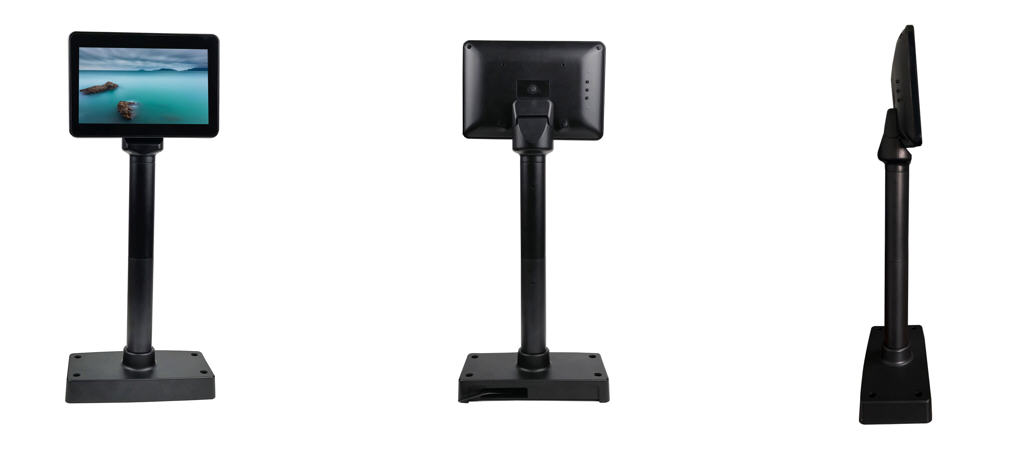

LM-7000U LM-7000V LM-7000H
7” LCD Screen Monitor





Specification

Model No.  LM-7000U  LM-7000V  LM-7000H
Graphics Display  Monitor
Module Size  7” TFT-LCD(16:9)
Dimension Size  186(W) X 114(H) mm
Viewing Size  152(W) X 86(H) mmm
VESA Size  75 X 75 mm
Resolution  800 X 480
 Pixels		  800 X 480
 Pixels		  1024 X 600
 Pixels		  1024 X 600
 Pixels
Pixel Size  0.0642 X 0.179 mm
Viewing Angle  180 Degree
Backlight Type  LED Backlight
Luminance  250 CD/M2
Contrast Ratio  500:01:00
Response Time  20 ms
Power Supply  DC5V 1A  DC12V 2A
Interface  USB  VGA  HDMI
Operating System  Windows/Android/IOS
Panel Dimension  205(W) X 65(H) X 35(D) mm
Total Height  210mm to 450mm
Base Dimension  187mm X 93mm
Color  Black/White
Weight  1.25KG
Color  Black/ Red/ White/ Silver
Working T&H  (0°C~40°C) (30%~80%)
Storage T&H  (-20°C~50°C) (10%~90%)
