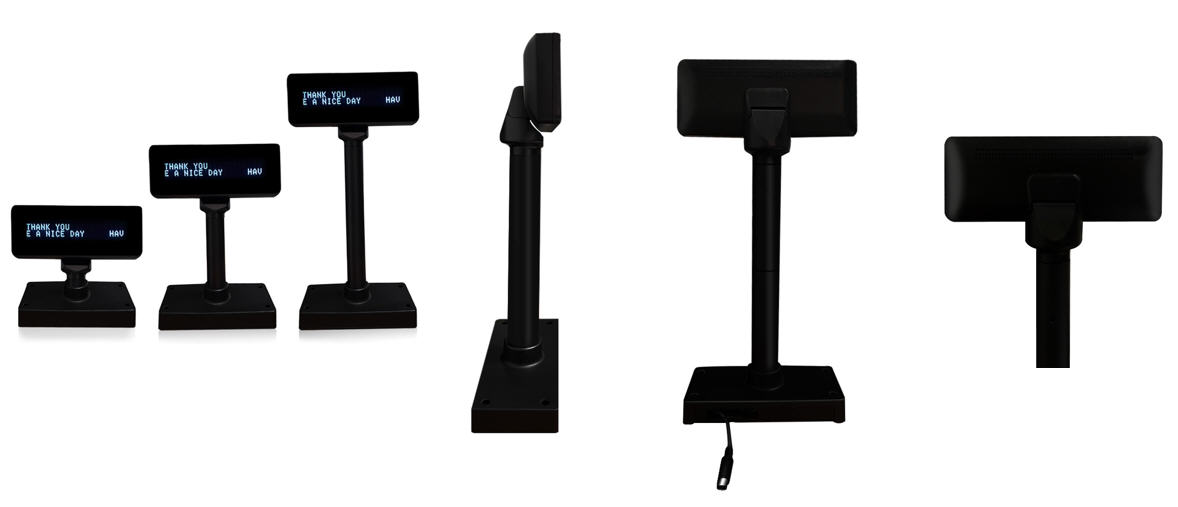

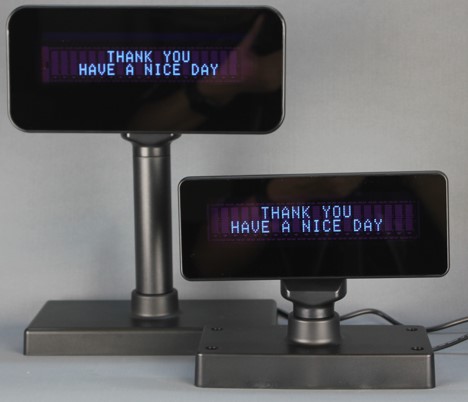

CD-2020
2 Lines Customer Pole Display





Specification

Model No.  CD-2020
Display method  Vacuum Fluorescent Display (VFD)
Brightness  700 CD/M
Display Color  Blue - Green
Characters  40 Characters (20 columns x 2 lines)
Character Font  5 X 7 Dot Matrix
Character Size  9.03 X 5.25 mm (H X W)
Character Type  96 Alphanumeric, 26 kinds of
 international character
Power Supply  DC5V USB power port
Power Consumption  2.5W
Interface  RS232 Serial / USB 2.0
Baud Rate  2400/9600BPS
Command Set  ESC/POS / CD5220 / UTC.....
OPOS System  Epson OPOS
Operating System  Windows/Android/Linux
MTBF  30000H
Viewing Angle  350°
Total Height  170 to 410mm
Panel Dimension  218(W) X 82(H) X 30(D) mm
Support Height  120mm X 2
Base Dimension  220 X 107 mm
Weight  0.9KG
Color  Black / White / Grey
Working T&H  -30°-50°,30%—80%
